Product Details:
|
| Type: | Other, Roller Transverse Vertical Cutting Machine | Condition: | New, New |
|---|---|---|---|
| Application: | APPAREL, Beverage, Chemical, Machinery & Hardware, Medical, 1300 | Packaging Type: | Case |
| Packaging Material: | Wood | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 380V/50HZ |
| Power: | 3KW | Weight: | 800kg |
| Dimension(L*W*H): | 2000*1300*1300mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Cutting Width: | 20-1300mm | NW: | 700kg |
| Max. Cutting Depth: | 3-50mm | Rated Power: | 3.5KW |
| Dimensions: | 2000*1300*1300mm | Port: | Huangpu |

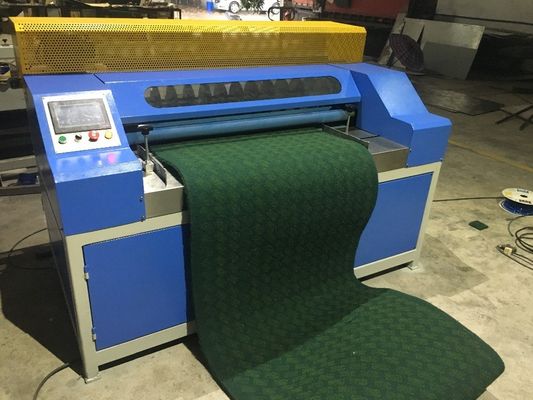

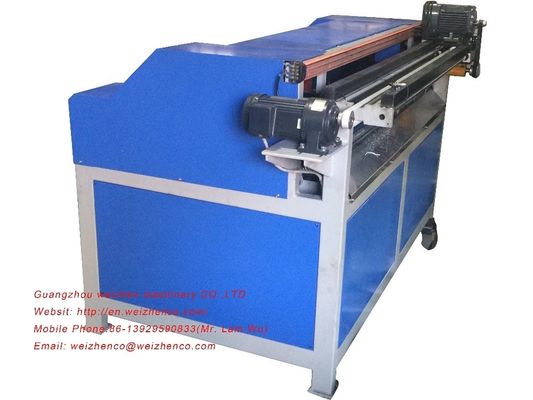

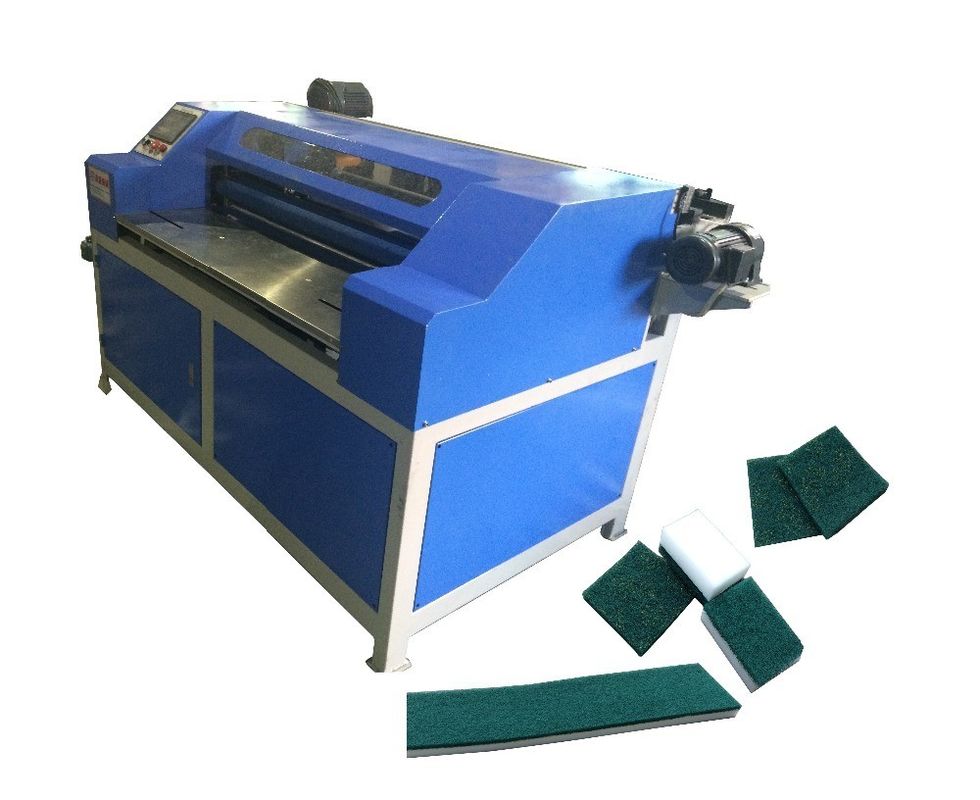

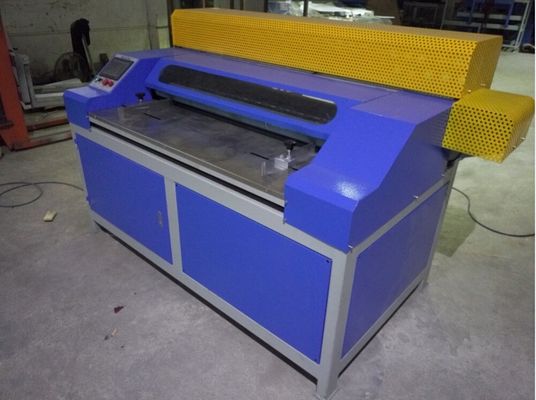

CNC roller transverse & vertical cutting machine
Application:

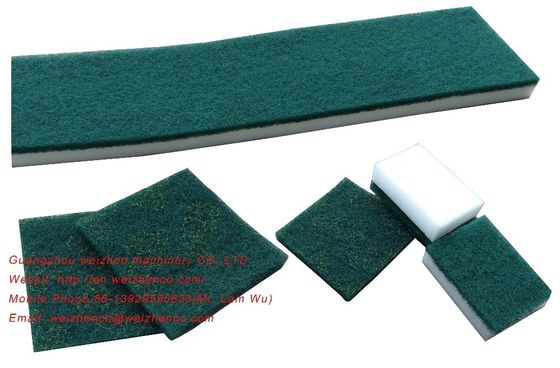

Used for the whole sheet of EPE to be cut to the specified size the different knives at the same time. Easy-handle and high efficiency.
Features:
1,PLC, auto feeding and multiple knives can cut the material in different sizes at the same time.
2,The height of roller can be motor driven adjusted.
3,Single-phase or triphase power.
4,The cutting size can be adjusted easily.
Specification:
|
Model |
Cutting Width (L*W.mm) |
Cutting Thickness(mm) |
Total Power(kw) |
Rated voltage(v) |
Dimension(L*W*H)(mm) |
NW(kg) |
|
R-1300L |
20~1200 |
3~50 |
3.55 |
AC380/50HZ |
1950*1200*1100 |
700 |
|
R-1700L |
20~1600 |
3~50 |
4.25 |
AC380/50HZ |
2400*1200*1100 |
800 |
|
R-2300L |
20~2200 |
3~50 |
4.45 |
AC380/50HZ |
2800*1200*1100 |
1000 |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
